Transmission Control Module is used to control the electro-hydraulic solenoid valves in hydraulic circuits, which actuate the clutches. The product  models ASIC, solenoid and other electronic components. All the components are modeled using MAST, Saber Modeling Language. Components modeled are CAN circuit, current regulator, hall-in –conditioning, solenoids, thermistor, Analog Decimal Converter, etc.

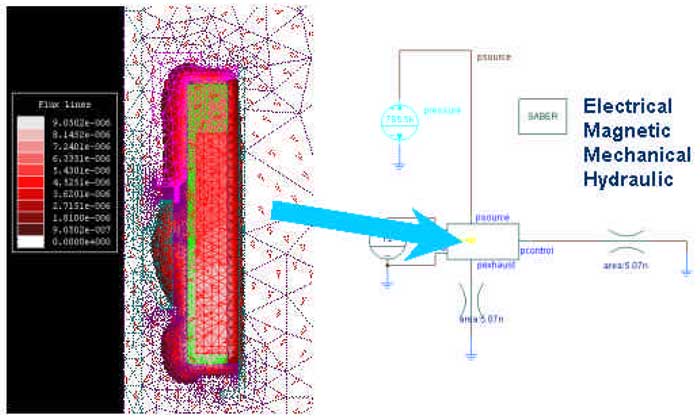

The solenoid model is composed of the electrical, magnetic, mechanical and hydraulic components. The magnetic part of the solenoid, which is FE based, was extracted using Ansoft Maxwell 2D FE model shown in the figure below.

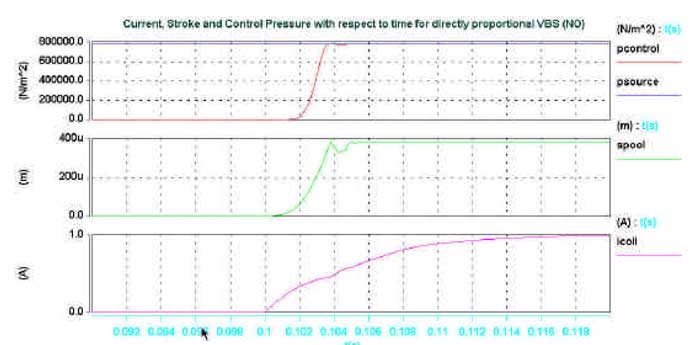

Current, spool, and pressure values for the directly proportional solenoid (Normally Open) are shown below.

  Following figure shows the simulation results for the current regulator.
